Specifications
| Model | 16405 |
|---|---|
| Supplier | Biomed |
| Category | Obstetric Tables |
| Parameter | Значение |
| Bed Dimensions | 2055 mm × 930 mm |
| Height | Min. 600 mm, max. 980 mm |
| Maximum Safe Load | 210 kg |
| Movement Speed at Maximum Load | Lifting: 0.8±0.1 m/min; lowering: 1.0±0.1 m/min |
| Backrest section incline upwards | 0° - 65° |
| Backrest section incline downwards | 0° - 5° |
| Incline of seat section upwards | 0° - 20° |
| Leg Sections Outward Extension | 90° (2×45°) |
| Leg sections incline upwards | 0° - 20° |
| Range of movement of leg sections | 0 – 60 mm |
| Range of displacement of auxiliary section | 0 – 100 mm |
| Rotation of side rails | 0° - 180° |
| Power consumption | 500 VA |
| Power supply parameters | 220 V/50 Hz |
| Warranty | 12 months |
Obstetric Tables
DH-C101B01
Model: 16405
Browse available alternatives in this category or call us for help selecting a replacement.
View alternatives →- More than 20 years in medical supply
- Specifications, availability and document checks
- Nova Poshta, Delivery or coordinated transport across Ukraine
- Payment by bank transfer; returns under applicable law
Product description

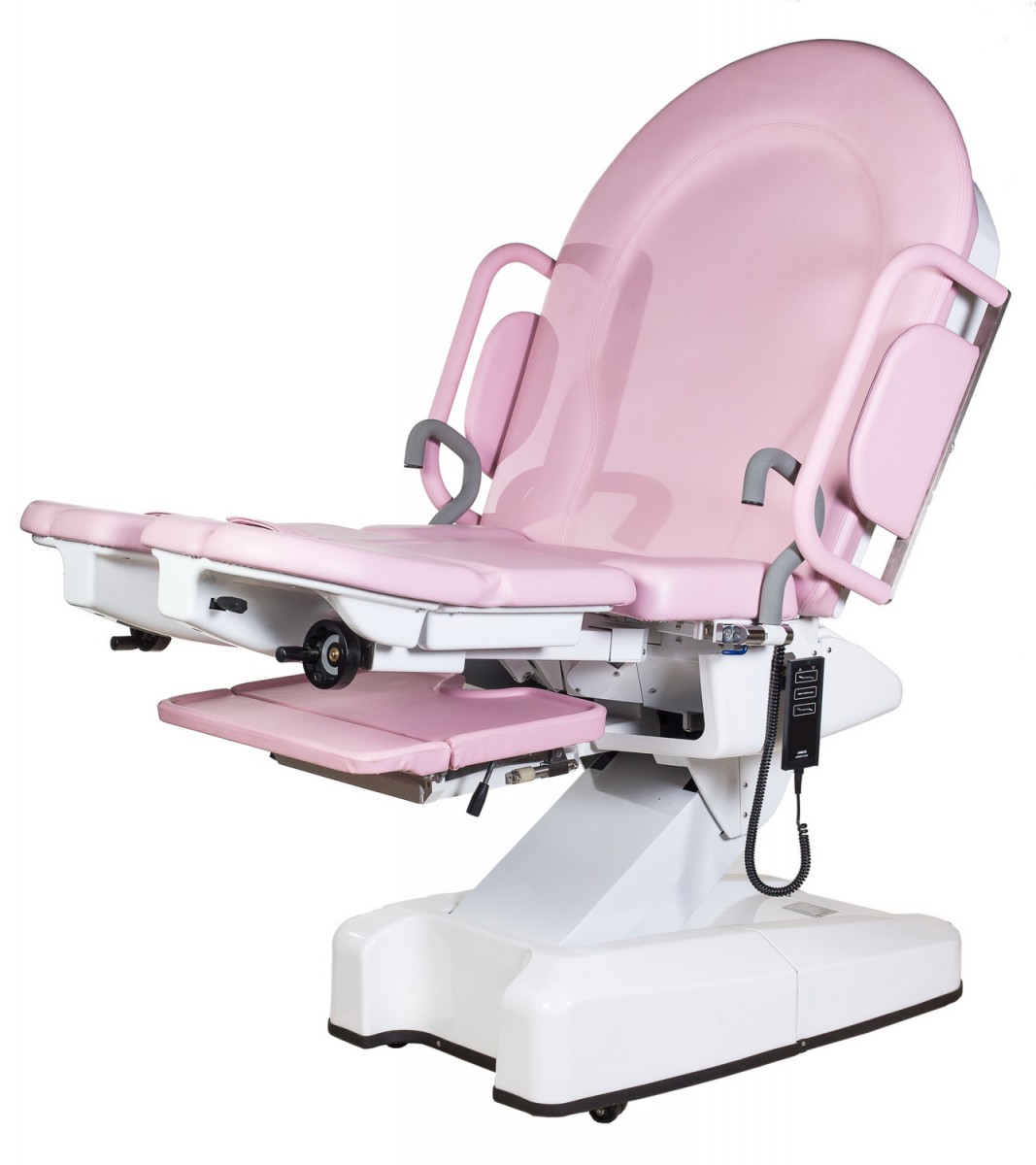

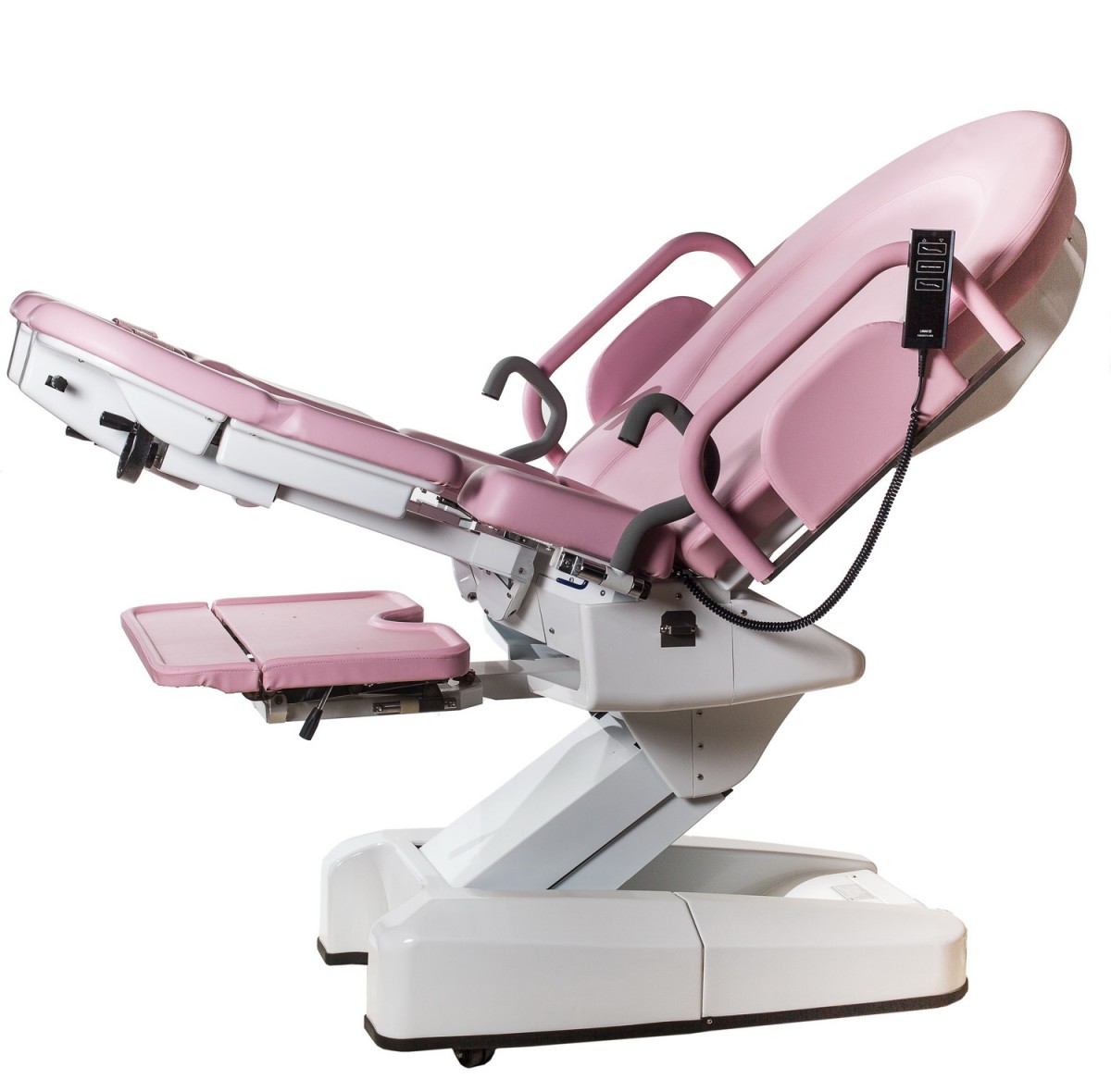

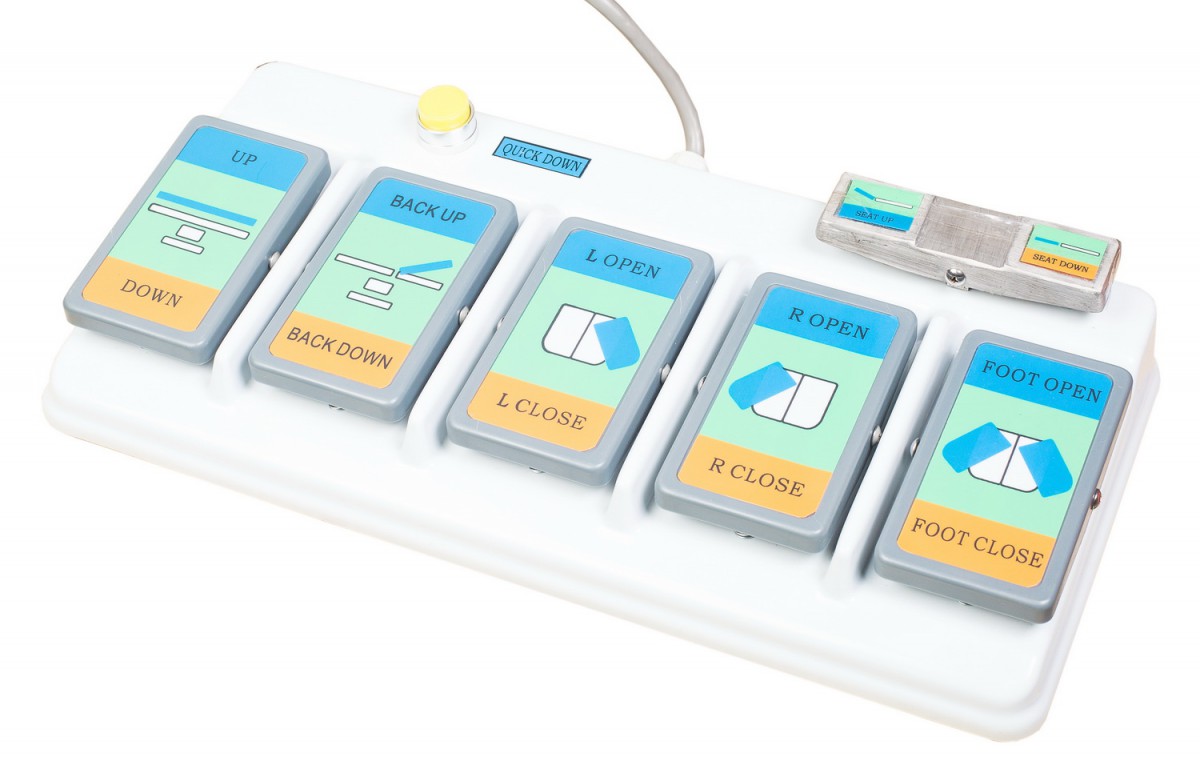

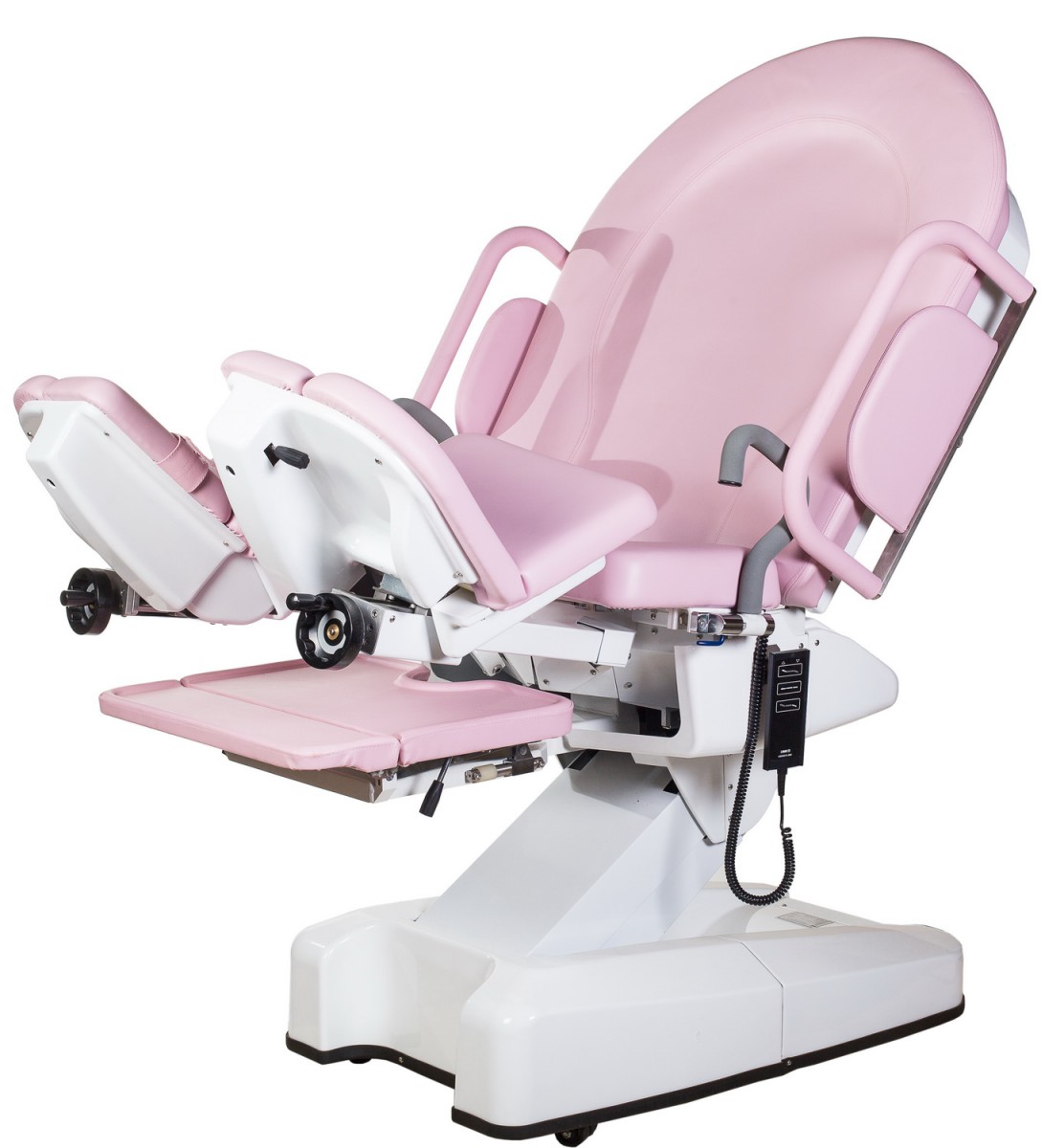

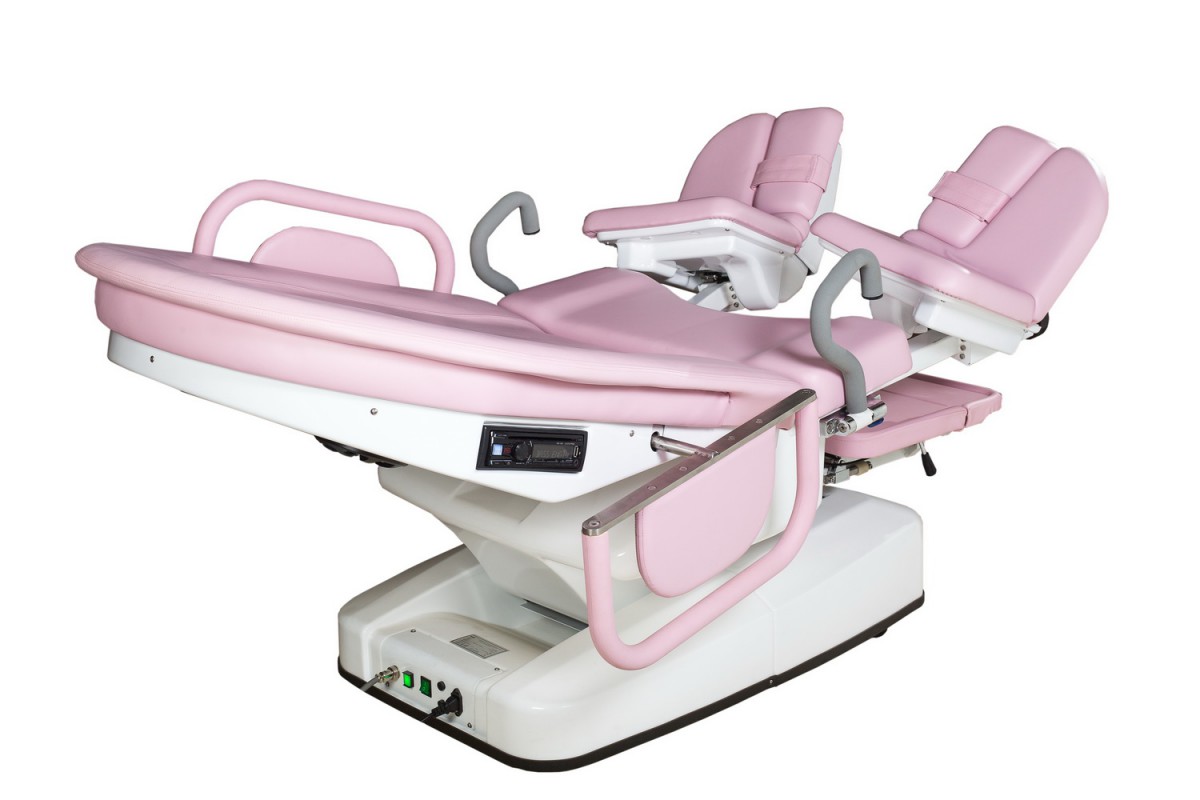

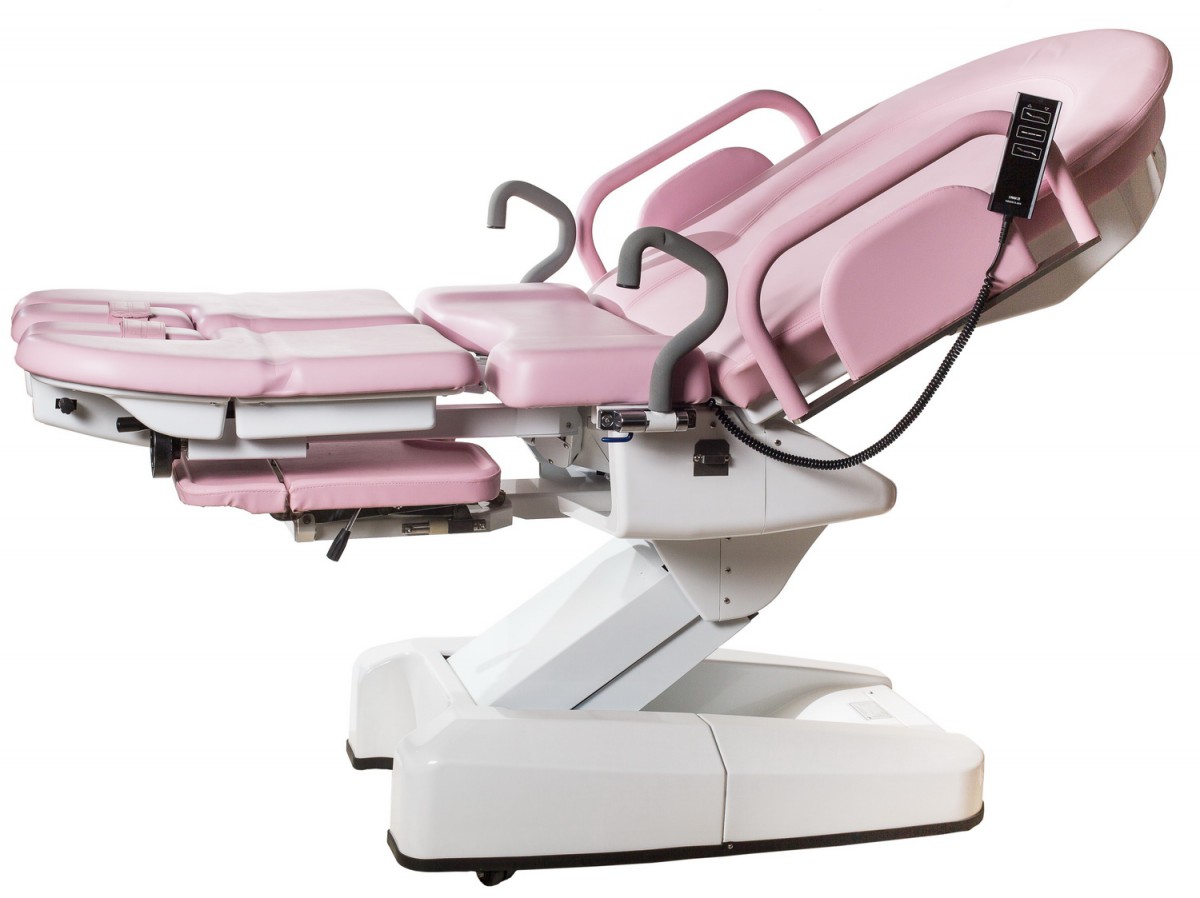

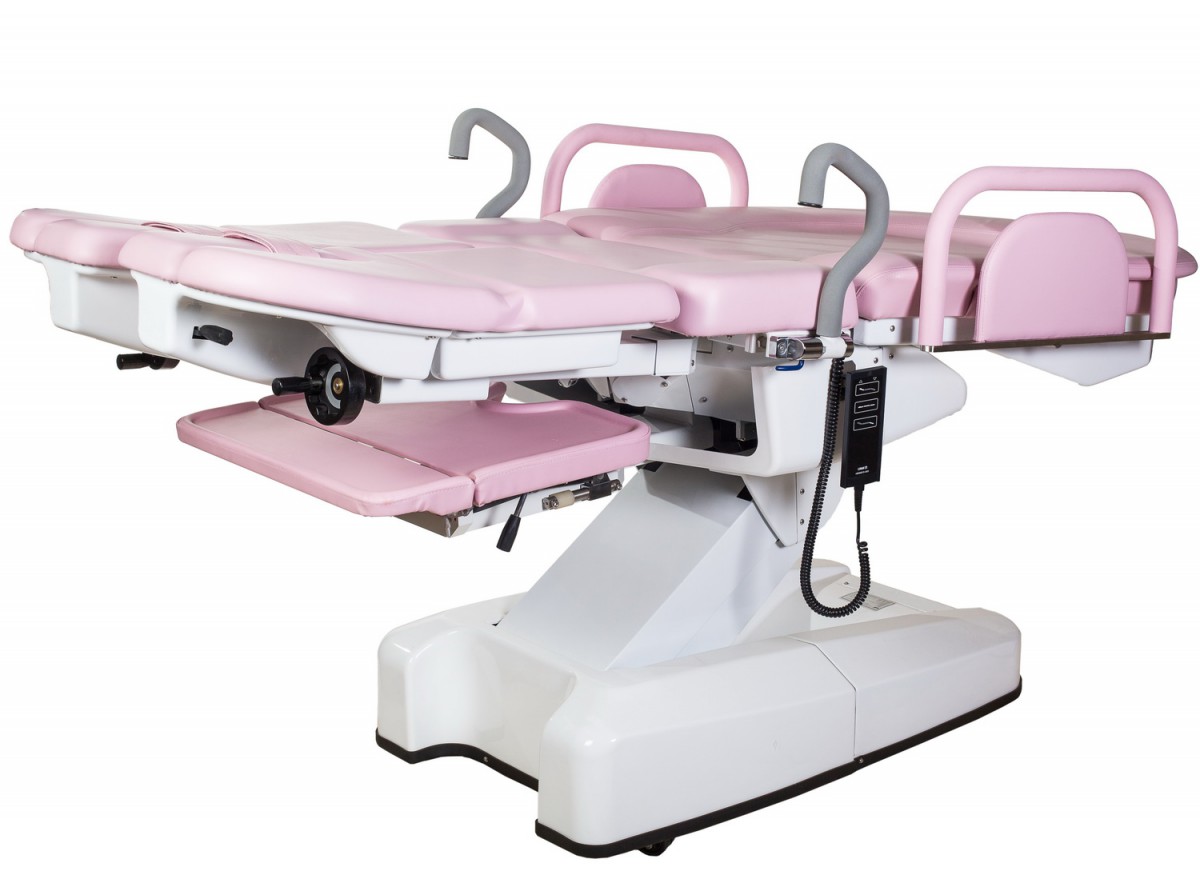

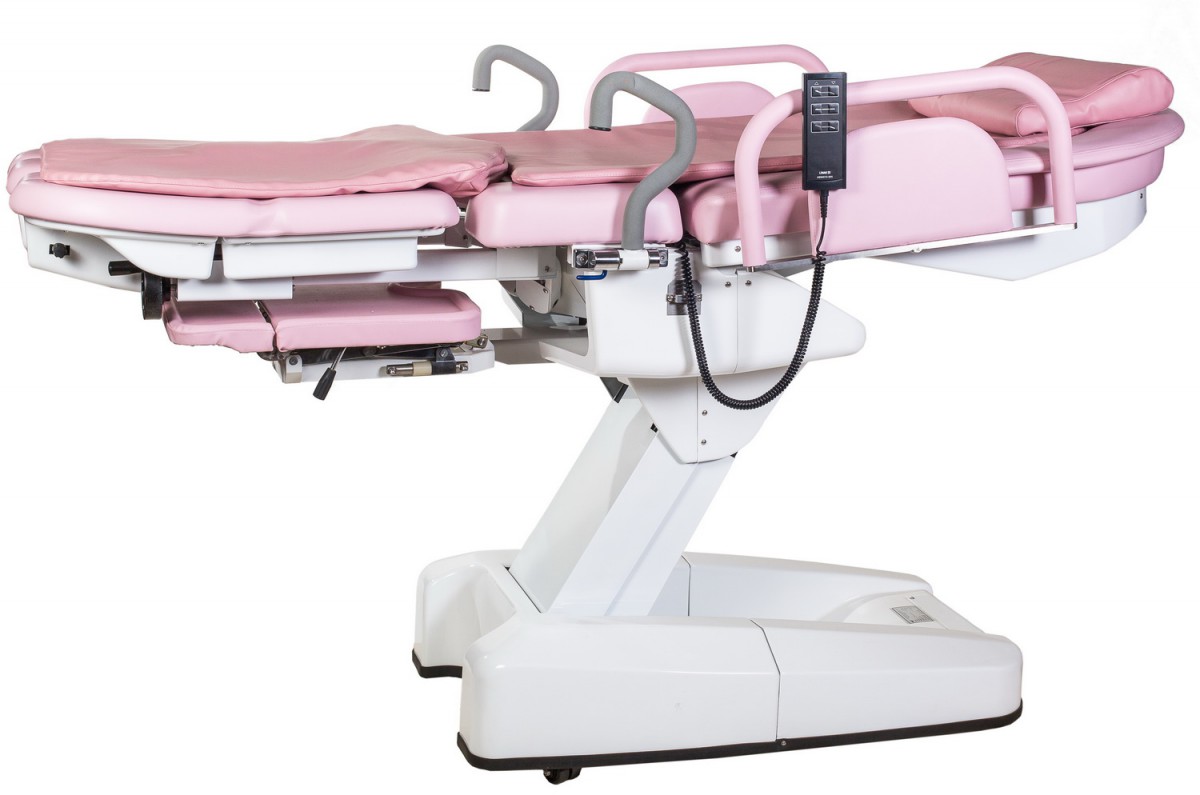

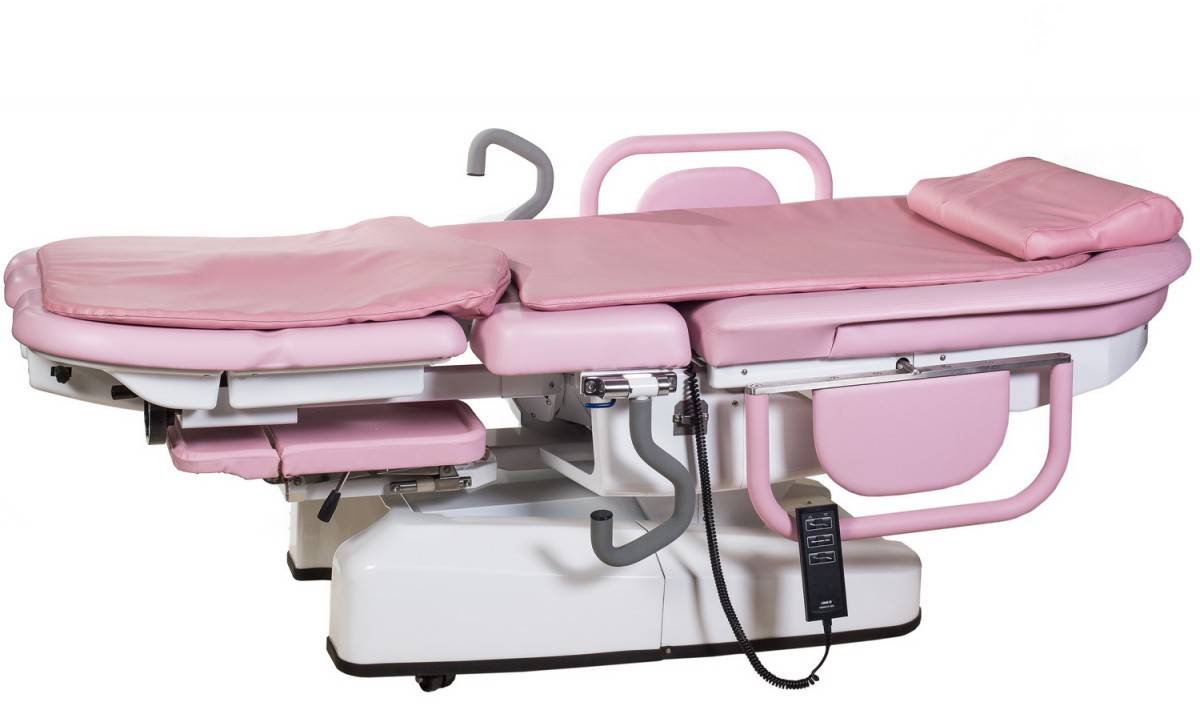

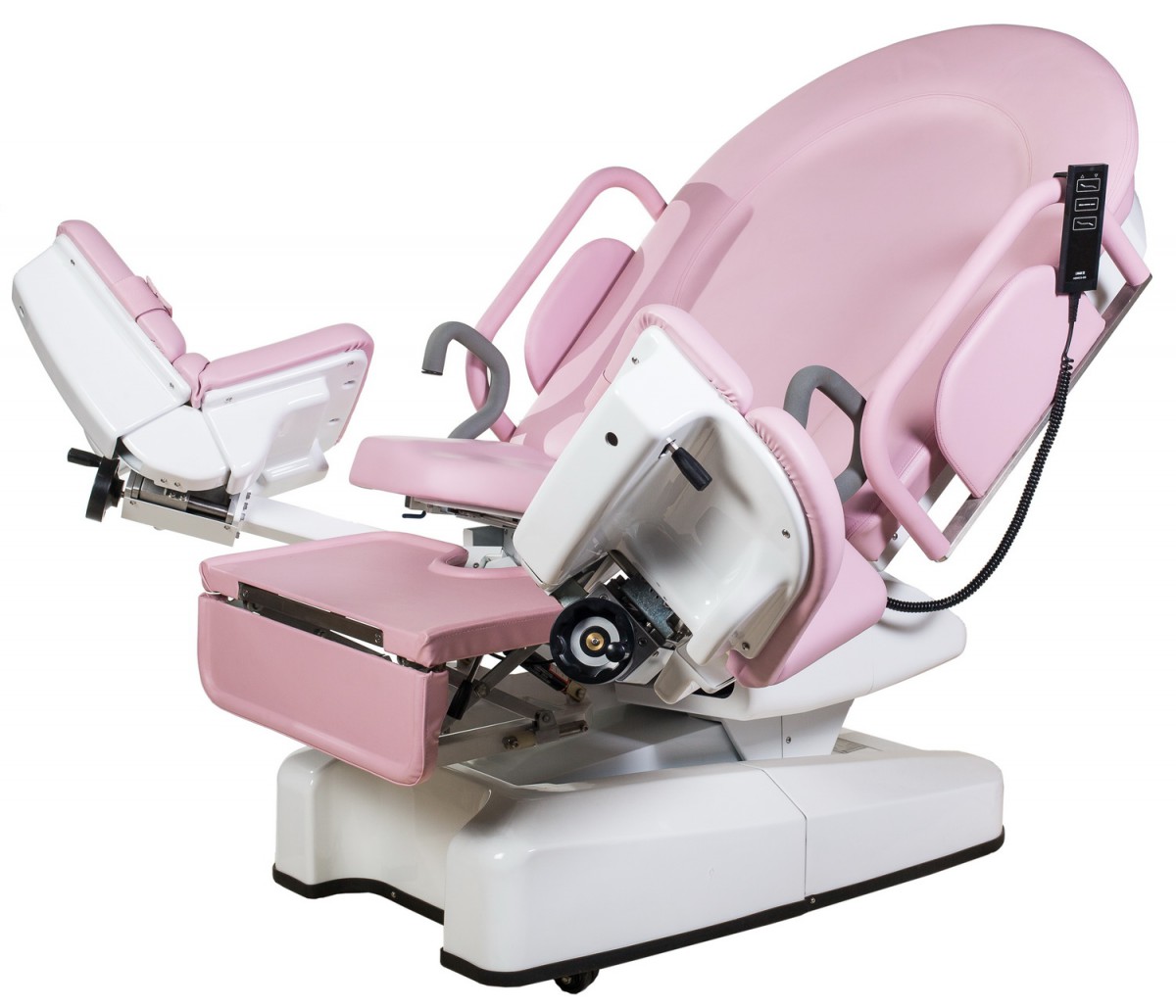

DH-C101B01 – multifunctional obstetric bed with electric drive, designed to provide the parturient with comfortable and safe positioning at all stages of labor; used during the pre-labor and labor periods, recovery, gynecological examinations, and obstetric operations in maternity hospitals, gynecological departments, and women's clinics. Features: The bed design allows setting a large number of different positions (can be used as a chair or bed) depending on needs, providing sufficient comfort for the parturient and optimal conditions for medical staff work. The bed configuration enables quick response and necessary manipulations in emergency situations that may arise in the postpartum period. Height adjustment of the bed, rotation of leg sections, tilt of the back section, and tilt of the seating section are performed using a LINAK electric drive (Denmark), characterized by stable operation during use and low noise level. Bed position control is carried out both by pedal and control panel. The bed is easy and convenient to clean: the bed surface and knee supports are covered with material resistant to disinfectants. Adjustment of the auxiliary section, side guards, handles, knee supports, and longitudinal displacement of leg sections is manual. The bed is equipped with an audio system. The "BIOMED" obstetric bed combines wide functional capabilities and reliability, excellent design and ergonomics, meeting the requirements of both medical professionals and patients.
