Specifications
| Supplier | Biomed |
|---|---|
| Category | Patient monitors |
| Parameter | Value |
| Basic configuration | Extended configuration |
| Monitor display | 12.1-inch color touchscreen; - |
| ECG monitoring (ECG) | 12/5/3 leads (HR, ST segment analysis, arrhythmia analysis); - |
| Respiration rate measurement range (RESP) | 0 -150 breaths/min; - |
| SpO2 measurement range | 0%~100%;; - |
| Pulse rate measurement range (PR) | 25~250 bpm; - |
| Measurement of NIBP parameters (NIBP). | Systolic pressure, Mean pressure, Diastolic pressure; - |
| Temperature (TEMP) | 2 channel, 0 - 50 °C; - |
| Accessories | For adults; For children / for newborns |
| Thermal printer | 12 channels in ECG mode or 6 channels in monitoring mode |
| Capnography parameters measurement (CO2) | -; CO2: 0-150 mmHg, RR: 0 - 150 breaths/min |
| IBP parameters measurement (IBP) | -; 4 channels; ART, PA, CVP, RAP, LAP, ICP, P1, P2. |
| Anesthetic gases parameters measurement (AG) | -; CO2, N2O, Des, Iso, Enf, Sev, Hal, O2 |
| Non-invasive impedance cardiography parameters measurement (ICG) | -; C.O.: 1.4 ~ 15 L/min SV: 5 ~ 250 ml/beat HR:40 ~ 250 bpm |
| Cardiac output parameters measurement (C.O.) | -; C.O.: 0.1 ~ 20 L/min BT: 25 ~ 43 °C IT: 0 ~ 27 °C |
Patient monitors

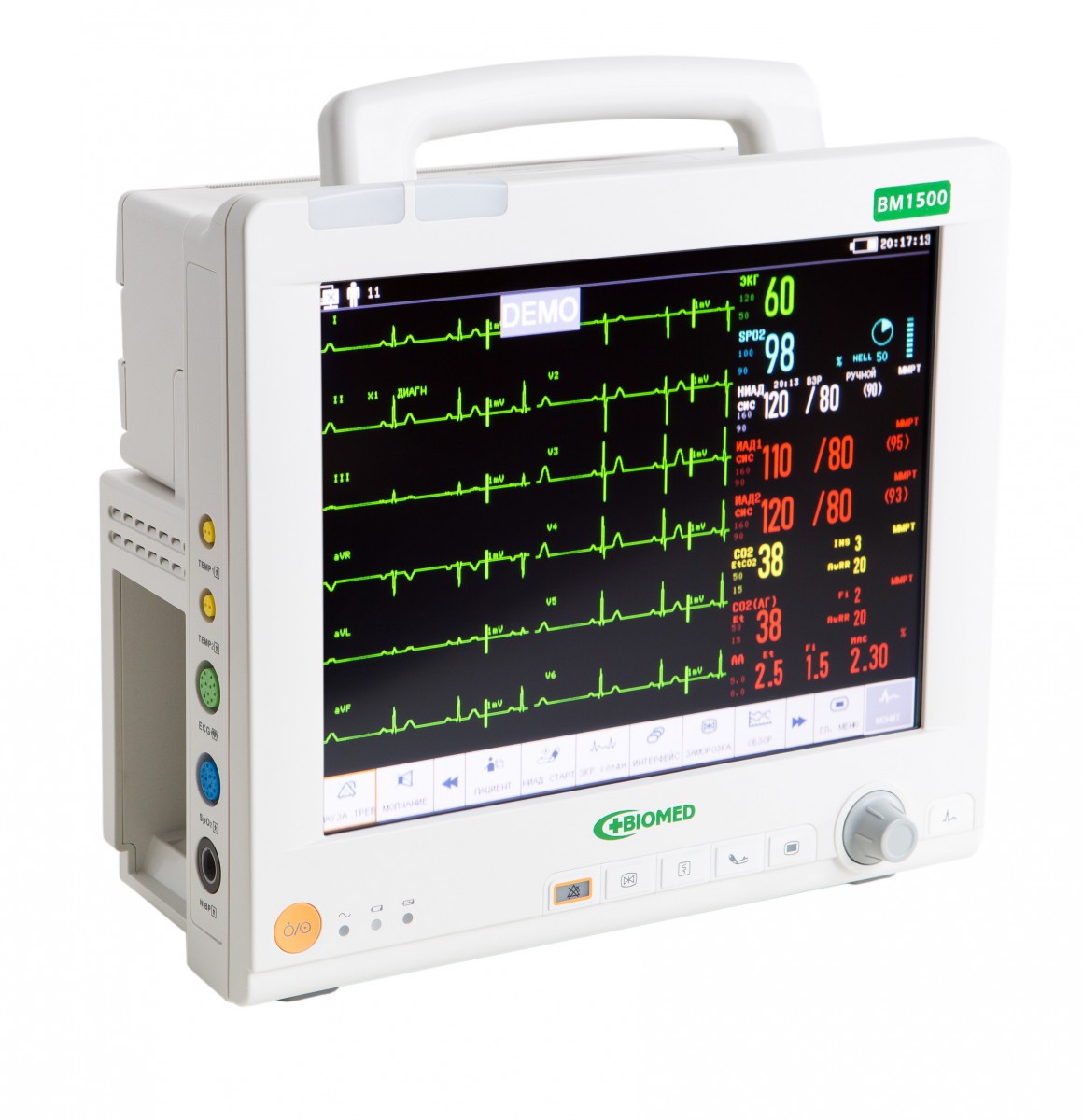

Expert class modular monitor "BIOMED" BM1500
Browse available alternatives in this category or call us for help selecting a replacement.
View alternatives →- More than 20 years in medical supply
- Specifications, availability and document checks
- Nova Poshta, Delivery or coordinated transport across Ukraine
- Payment by bank transfer; returns under applicable law
Product description
In the cardiology department, doctors typically use a patient monitor and electrocardiograph for monitoring and diagnosing the patient's condition. For convenience in monitoring, diagnosis, and space saving in the department, we recommend using the specialized modular patient monitor "BIOMED" BM1500, which combines the functions of a patient monitor and a 12-lead electrocardiograph with Holter ECG registration. Features: • Modular monitor design allows configuring the monitor according to needs, and if you need to expand the monitor configuration later, you just need to order additional modules. • The monitor design includes a built-in basic parameters module (ECG / RESP, SpO2, NIBP, TEMP x2), two slots for removable modules, and a slot for a modular 12-lead thermal printer. • Data transmission between modules is via IR communication, eliminating unwanted electromagnetic interference. • 12.1-inch high-resolution color touchscreen display (800 × 600) provides excellent visibility of signals and measured values. ü 72 hours storage of holographic ECG reviews in 12 leads. ü Quick access button to switch between monitoring and ECG modes. ü Modular thermal paper printer 216 mm wide provides simultaneous printing of 12-lead ECG and Holter ECG. ü The monitor records Wilson lead, and complex Holter ECG registration helps avoid misdiagnoses with more complex and abnormal ECG signals. • Built-in lithium battery guarantees continuous patient data recording for 4 hours of continuous operation. • Capability to connect to a central monitoring system. • Wall or mobile cart mounting options. • Remote monitoring of SpO2 and ECG parameters is possible using a special telemetry module. • Thanks to the use of quality components from leading manufacturers, the monitor has high reliability, powerful capabilities, and patient monitoring functionality to meet the needs of a wide range of services in any hospital. Warranty - 24 months (6 months on components).
