Specifications
| Supplier | Biomed |
|---|---|
| Category | Laboratory microscopes |
| Name | Кратность; Числовая апертура (N.A); Рабочее расстояние, мм; Иммерсия |
| Planachromatic objective | 4×; 0,10; 15,10; Сухая |
| 10× | 0,25; 1,50; Сухая |
| 40× | 0,65; 0,38; Сухая |
| 100× | 1,25; 0,09; Масляная |
| Parameter | Значение |
| Magnification | 40× - 1000× |
| Trinocular tube | увеличение 1×, с поворотом относительно корпуса 360° |
| Tube inclination angle | 30° |
| Revolving nosepiece | На 4 объектива |
| Objectives | 4×/0,10; 10×/0,25; 40×r/0,65; 100×r/1,25(oil) |
| Eyepiece | planachromatic10× |
| Linear field of view in image space, mm | 18 |
| Overall dimensions of the specimen stage, mm | 132×140 |
| Condenser | Abbe. N.A 1,25 с ирисовой диафрагмой |
| Adapter for photo/video shooting | 0.35×40CTV |
| Light source (LED) | 6В/3Вт |
| Power supply | 220-240В, 50/60Гц |
| Power consumption, VA | 25 W |
| Overall dimensions, mm | не более 367×213×350 |
| Weight, kg | 4 |
Laboratory microscopes

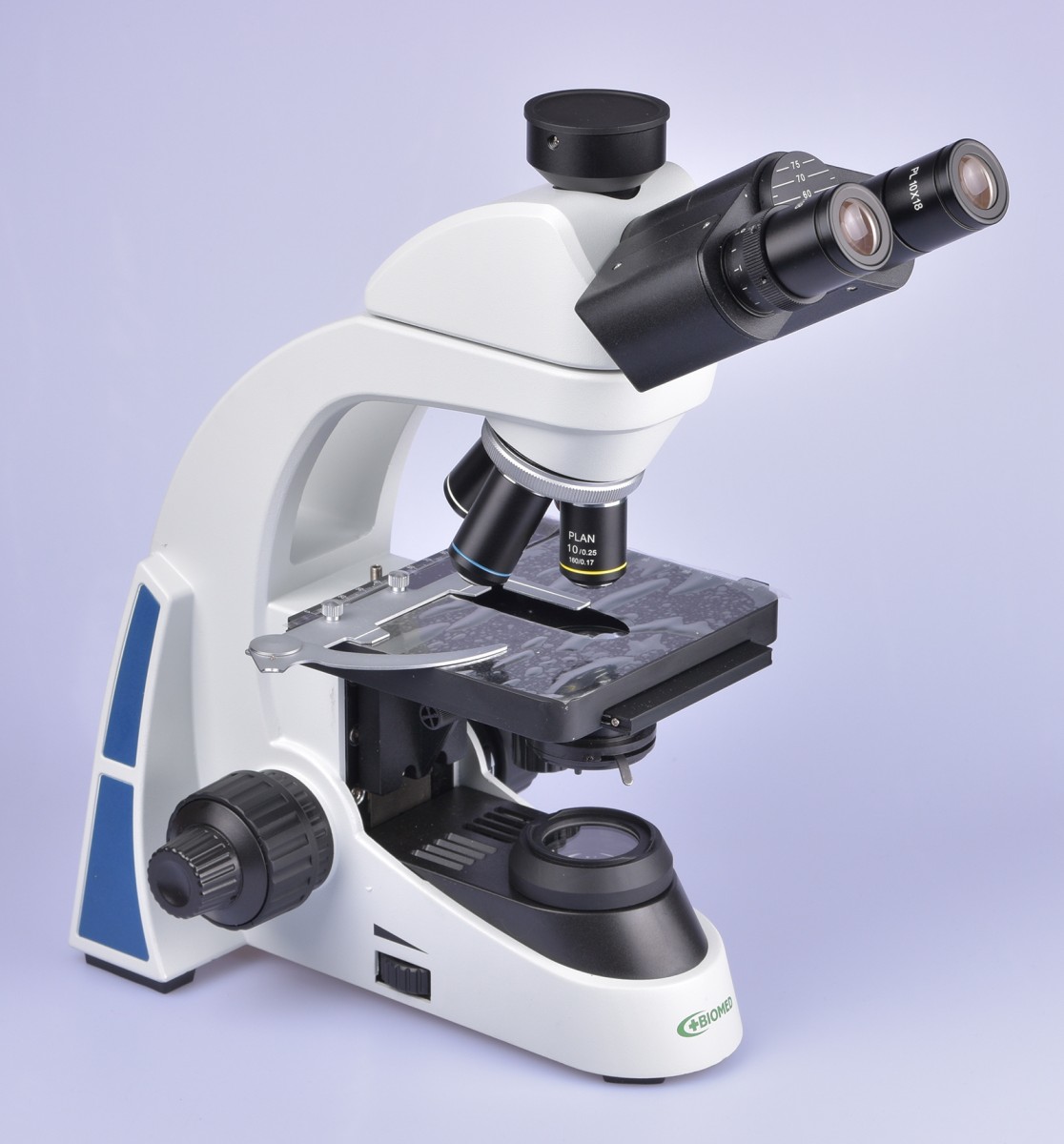

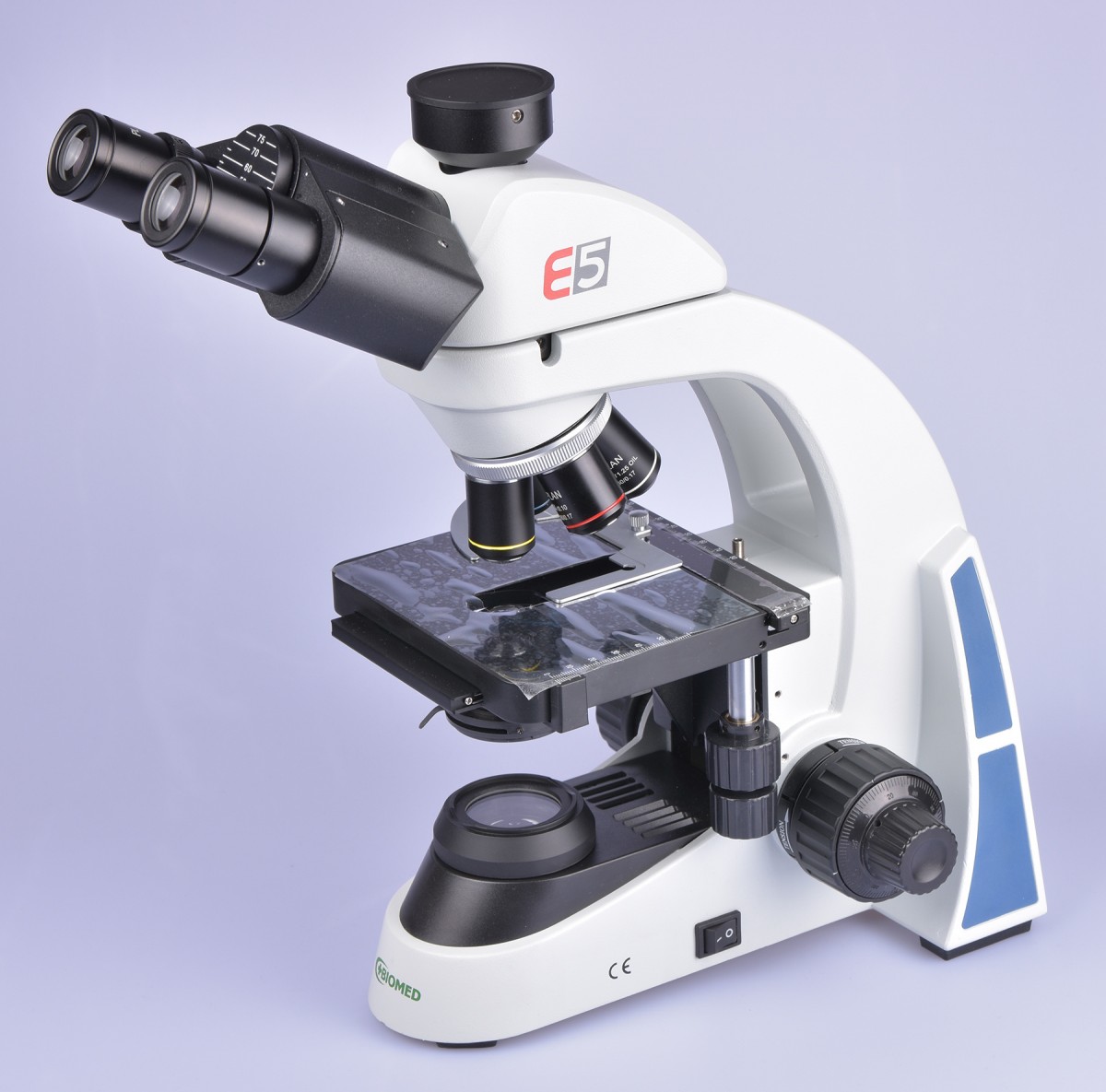

Microscope "BIOMED" E5T (with planachromatic objectives)
Browse available alternatives in this category or call us for help selecting a replacement.
View alternatives →- More than 20 years in medical supply
- Specifications, availability and document checks
- Nova Poshta, Delivery or coordinated transport across Ukraine
- Payment by bank transfer; returns under applicable law
Product description
The "BIOMED" E5T microscope is designed for routine and general clinical studies in transmitted light in the bright field. It is used in laboratories of medical and scientific research institutions for conducting biochemical, pathological anatomical, cytological, hematological, urological, dermatological, and biological studies. The "BIOMED" E5T microscope is designed for routine and general clinical studies in transmitted light in the bright field. It is used in laboratories of medical and scientific research institutions for conducting biochemical, pathological anatomical, cytological, hematological, urological, dermatological, and biological studies. Stage adjustment for right-handed operation. Trinocular tube with 360° rotation and tilt angle up to 30°; Planachromatic eyepieces; Eyepiece with enlarged field of view and diopter adjustment capability; Revolving head provides more space in front of the stage, speeding up and facilitating work with the slide; Effective, bright, and uniform illumination. The use of LEDs reduces power consumption and increases the lifespan of the light source. Safe and easy replacement of the light source; High-quality planachromatic objectives; Coaxial coarse and fine focusing mechanism on both sides of the body; Special antifungal substance applied in hazardous areas on the inner surface of the optics; Stage with improved transverse movement in the horizontal plane. Vertical movement limiter of the stage; Condenser N.A.1.25 with iris diaphragm, aperture adjustable according to the objective; Thoughtful ergonomic design allowing easy microscope operation in a natural posture without additional shoulder strain and enabling prolonged observations
