Specifications
| Supplier | Biomed |
|---|---|
| Category | Laboratory microscopes |
| Name | Кратность; Числовая апертура (N.A); Рабочее расстояние, мм; Иммерсия |
| Planachromatic objectives corrected at infinity | 4×; 0,10; 15,10; Сухая |
| 10× | 0,25; 1,50; Сухая |
| 40× | 0,65; 0,38; Сухая |
| 100× | 1,25; 0,09; Масляная |
| Parameter | Значение |
| Magnification | 40-1000 |
| Tube | Trinocular, with 360° rotation relative to the body |
| Tube inclination angle | 30° |
| Revolving nosepiece | with 5 objectives |
| Objectives | 4×/0,10; 10×/0,25; 40×/0,65; 100×/1,25(масло) |
| Eyepiece | планохроматический 10× |
| Diopter adjustment of the eyepiece | ±5 diopters |
| Linear field of view in image space, mm | 20 |
| Focus adjustment | Coarse adjustment step 25 mm, fine adjustment step 0.002 mm |
| Built-in mechanical stage | Two-coordinate 140×132 mm with specimen holder |
| Transverse stage movement | 50×76мм |
| Condenser | N.A 1,25 |
| Power consumption | 65 VA |
| Light source (LED) characteristics | 3 W |
Laboratory microscopes

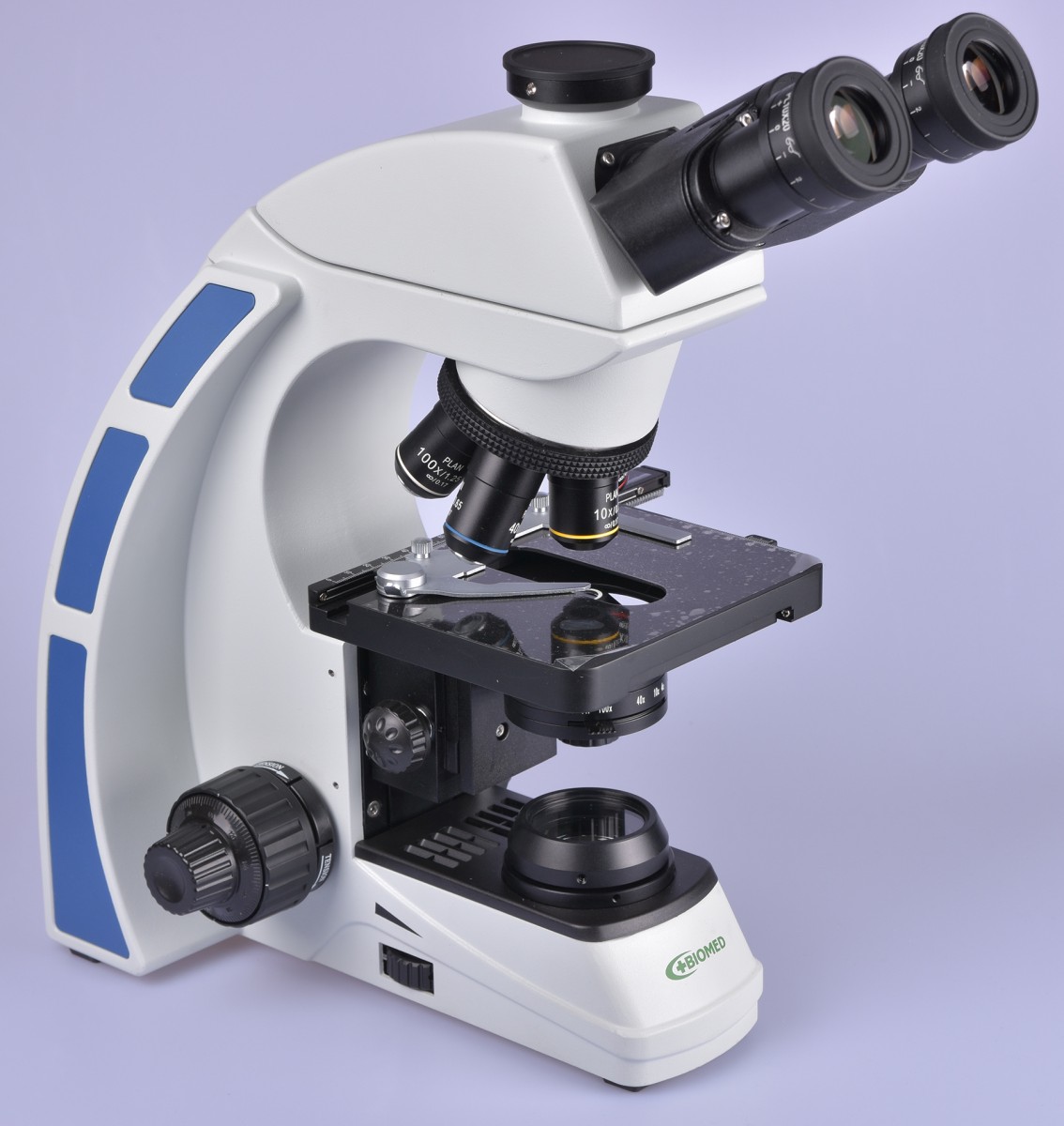

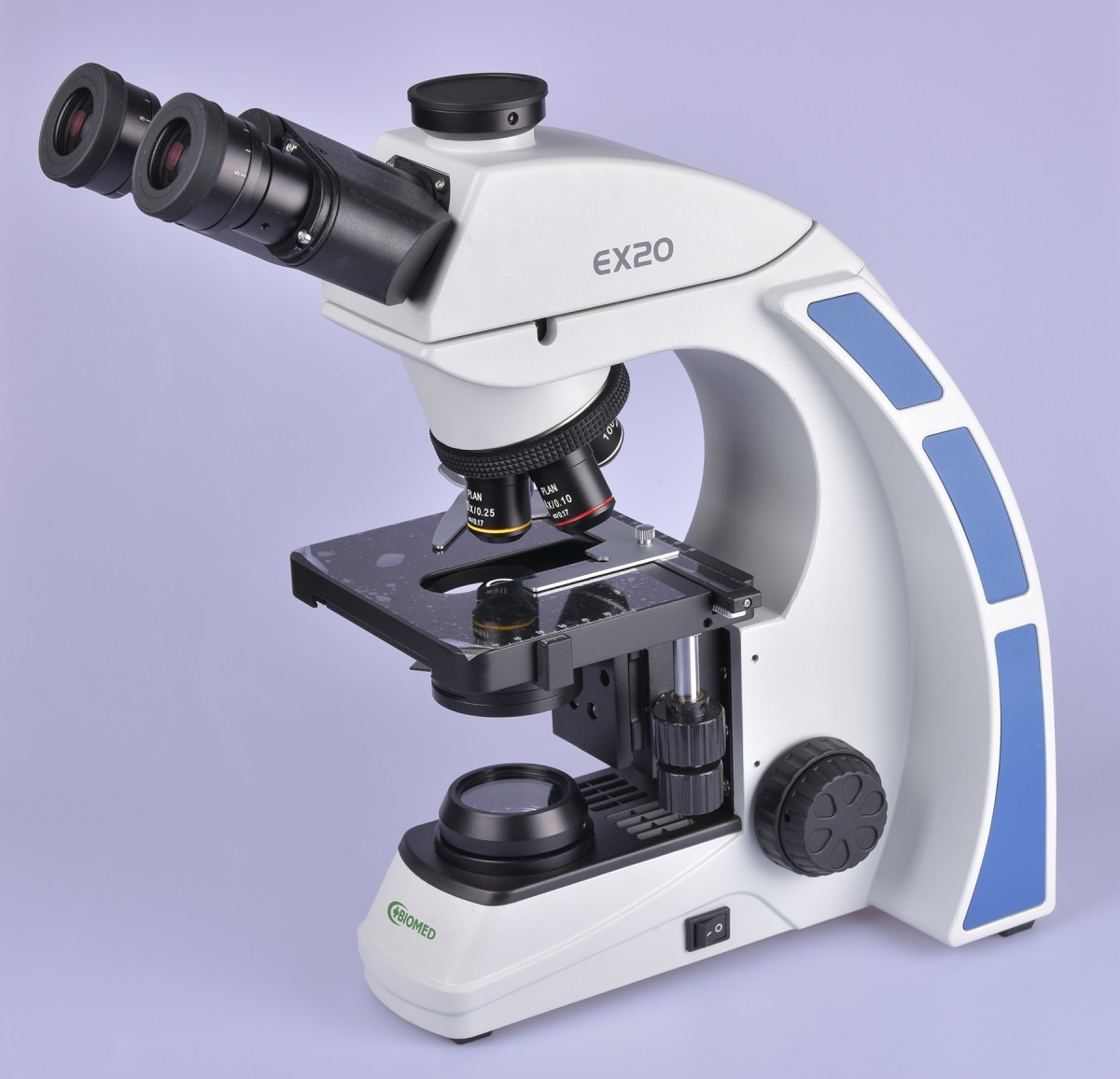

Microscope "BIOMED" EX20-T
Browse available alternatives in this category or call us for help selecting a replacement.
View alternatives →- More than 20 years in medical supply
- Specifications, availability and document checks
- Nova Poshta, Delivery or coordinated transport across Ukraine
- Payment by bank transfer; returns under applicable law
Product description
Microscope "BIOMED" EX20-T is designed for routine and general clinical studies in transmitted light in bright field. It is used in laboratories of medical and scientific research institutions for biochemical, pathological anatomy, cytological, hematological, urological, dermatological, and biological studies. Features: Trinocular tube with 360° rotation and tilt angle up to 30°; Eyepieces with enlarged field of view and possibility of separate diopter adjustment, interpupillary distance adjustment; Revolving nosepiece (with 5 objectives) provides more space in front of the stage, speeding up and facilitating work with the slide; Effective, bright, and uniform illumination. Use of LEDs reduces power consumption and increases the lifespan of the light source. Safe and easy replacement of the light source; High-quality “infinite” plan achromatic objectives with correction of chromatic aberrations and field curvature across the entire field of view; Special antifungal substance applied in hazardous areas on the inner surface of the optics; Stage with improved transverse movement in the horizontal plane. Vertical movement limiter of the stage; Condenser NA 1.25. Coaxial coarse and fine focusing mechanism on both sides of the frame; Illumination brightness adjustment Capability to install additional equipment for photo and video recording, as well as for computer connection; Thoughtful ergonomic design allowing easy microscope operation in a natural posture, without additional shoulder strain, enabling prolonged observations
