Specifications
| Model | 403B |
|---|---|
| Supplier | Biomed |
| Category | Inhalers |
| Power supply, VA | не більше 50 |
| Ultrasonic frequency | 1,7 МГц ± 10% |
| Maximum spray rate | не менее 3 мл/мин. |
| Vol | 150 мл |
| Volume of the medication cup | 350 мл |
| Water reservoir volume | 300 мл |
| Procedure timer | від 0 до 60 хв |
| Noise level | не більше 50 дБ |
| Aerosol dispersity | 0,5 до 10 мкм (90% менше 5 мкм) |
| Average aerosol particle size (MMAD) | 5 мкм |
| Weight | не более 2,9 кг |
| Dimensions (length x width x height) | 340х185х120 мм |
| Ambient temperature | от5 до 40 °С |
| Relative air humidity | 30 – 80% |
| Atmospheric pressure | 86 кПа – 106 кПа |
Inhalers

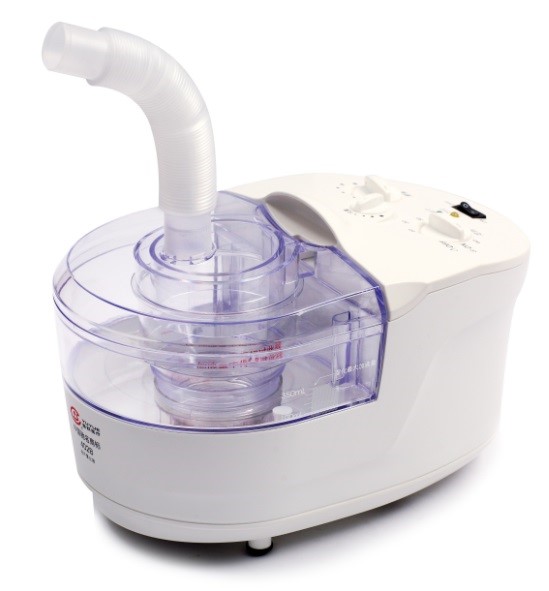

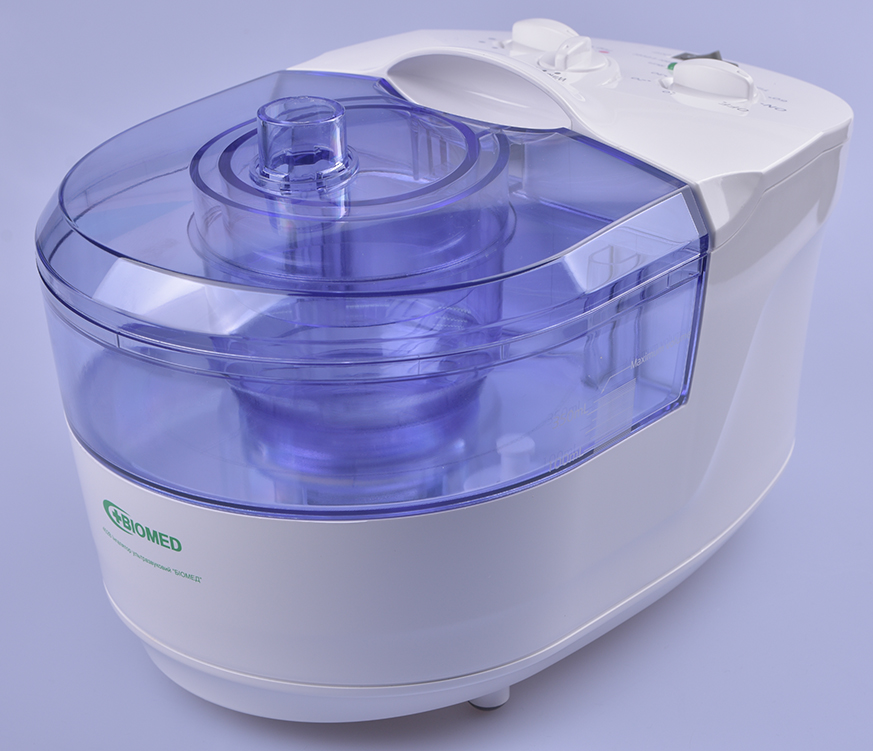

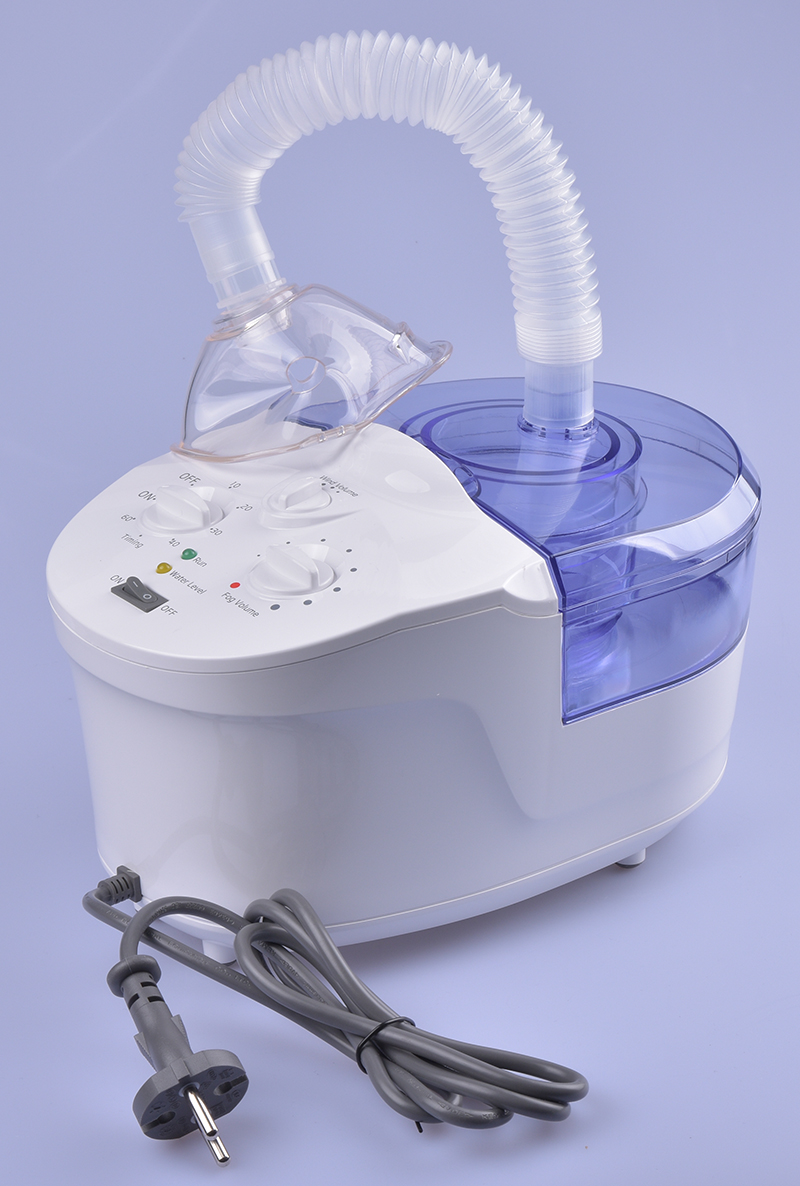

Ultrasonic inhaler «Biomed» 402V
Model: 403B
Browse available alternatives in this category or call us for help selecting a replacement.
View alternatives →- More than 20 years in medical supply
- Specifications, availability and document checks
- Nova Poshta, Delivery or coordinated transport across Ukraine
- Payment by bank transfer; returns under applicable law
Product description
The "БИОМЕД" 402В ultrasonic nebulizer is intended to nebulize medicines and deliver them to the airways of patients with bronchopulmonary diseases for effective treatment and rehabilitation at all stages of medical care. The "БИОМЕД" 402В ultrasonic nebulizer is intended to nebulize medicines and deliver them to the airways of patients with bronchopulmonary diseases for effective treatment and rehabilitation at all stages of medical care. It is intended for use in medical and preventive care facilities of various levels, including outpatient clinics, hospitals, sanatoriums and inhalation rooms in physiotherapy departments. The "БИОМЕД" 402В ultrasonic nebulizer can be used for diagnostic procedures, including obtaining induced sputum, delivering radioisotopes into the lungs (ventilation assessment), dyes (clearance assessment) and allergens (bronchial asthma diagnosis), or preparation for bronchoscopy (bronchodilators, mucolytics, lidocaine), and other procedures. Nebulization is achieved through high-frequency vibration of a piezoelectric element. Aerosols produced by ultrasonic nebulizers have a high degree of dispersion, ranging from 0,5 to 10 micrometres. The medicine is converted into a fine aerosol mist. Aerosol particles measuring 8-10 micrometres settle in the mouth and nasal cavity, those from 5 to 8 micrometres in the upper airways and trachea, from 3 to 5 micrometres in the lower airways, from 1 to 3 micrometres in the bronchioles, and from 0 , 5 to 2 micrometres in the alveoli. During inhalation therapy using the 402В, the first-pass effect and reduction of medicine activity in the liver are avoided, and a high concentration of medication in the airways is achieved. The device offers high performance and prolonged operation (up to 4:00), and is simple and convenient to use.
